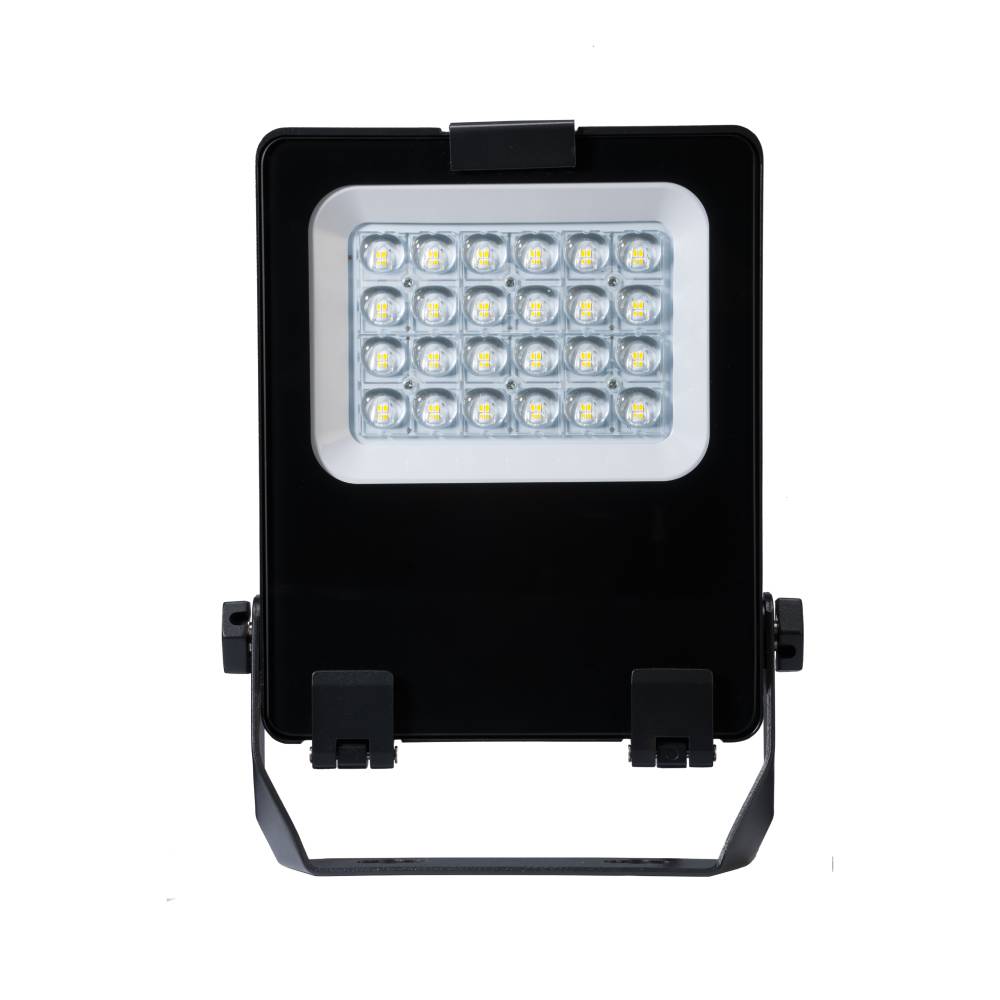

Cover & Zoom Flood light Asymmetric optics
| Code | L301249 |
| EAN | 8020295038924 |
| Equipment color | Black |
| Power supply | 220÷240V 50/60Hz |
| Power (W) | 60 W |
| Light source | LED |
| Light color | 4000K |
| Power factor | 0,98 |
| Optic | Asymmetric |
| Beam angle | 52° x 117° |
| Source stream | 8949 lm |
| Application flow | 8135 lm |
| Lifetime | 60000 h |
| Lumen maintenance | L80 |
| Insulation class | I |
| Operated Temperature | -40°/+50° |
| Weight | 3,6 kg |
Description
Type of appliance
LED luminaire for outdoor areas
Areas of use
Exterior areas, facade lighting
Optical system
Optical system made with polycarbonate lens optics. Anti-aging silicone seal with a high level of springback elasticity recovery. Safety glass terminal plate.
LED system
LED system consisting of a LED module mounted on aluminum die-casting body.
Body of the appliance
Die-cast aluminum body painted with polyester powders. Adjustable support for wall or pole installation. External stainless steel screws.
Electrical connection
Electrical connection via IP67 external connector that allows connection to the mains without opening the luminaire body from Ø 9 to Ø 12 mm.
Electrical version
With non dimmable and programmable driver.
