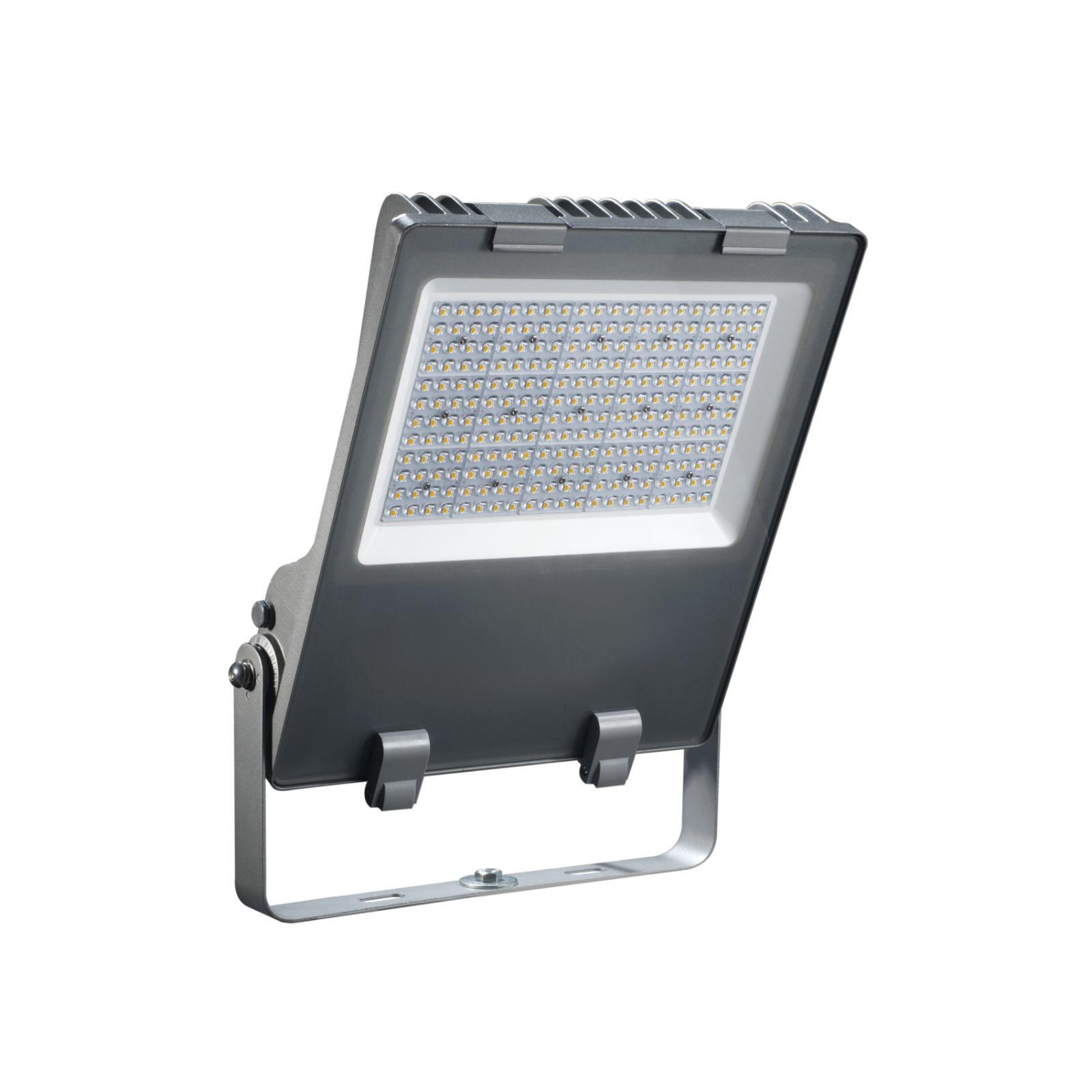

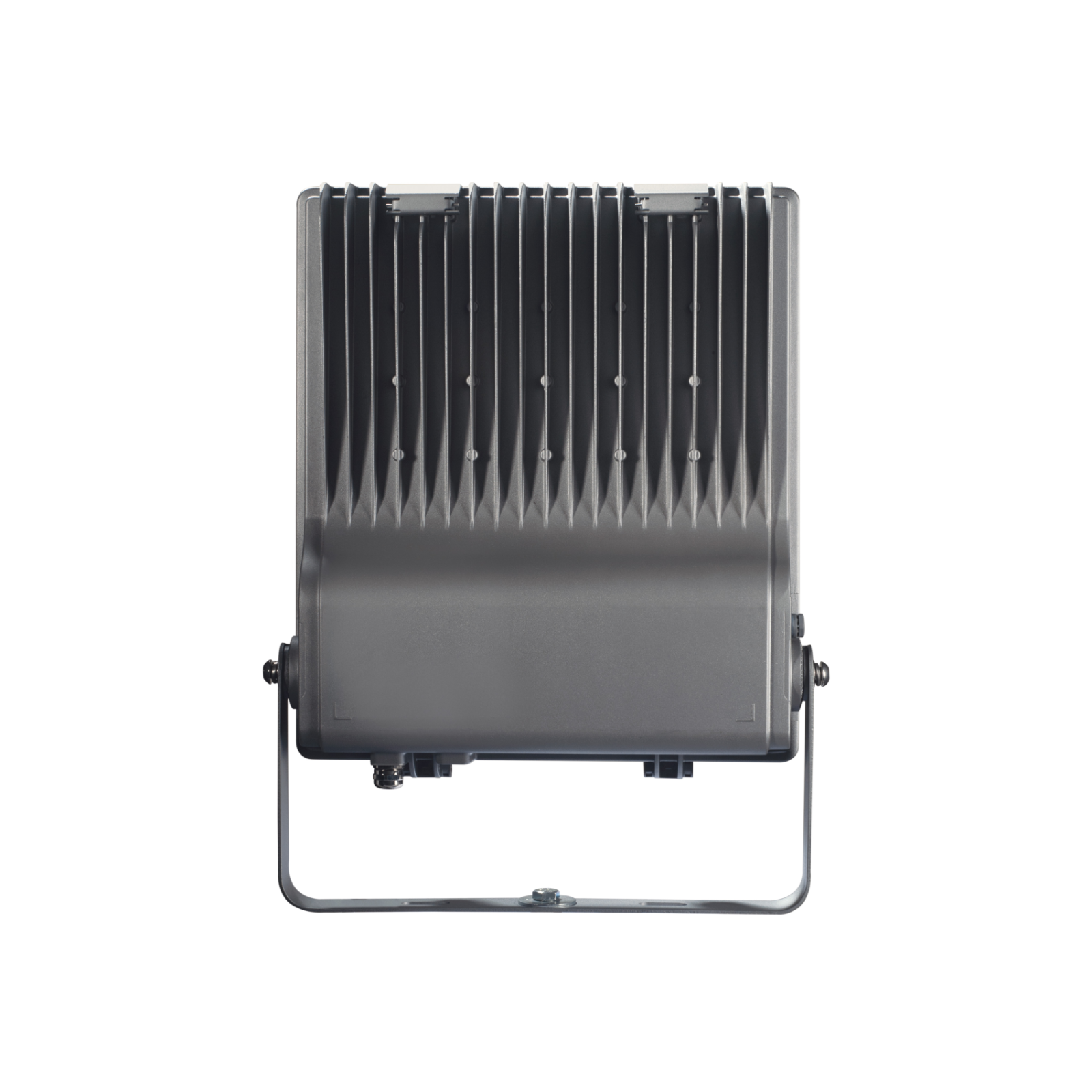

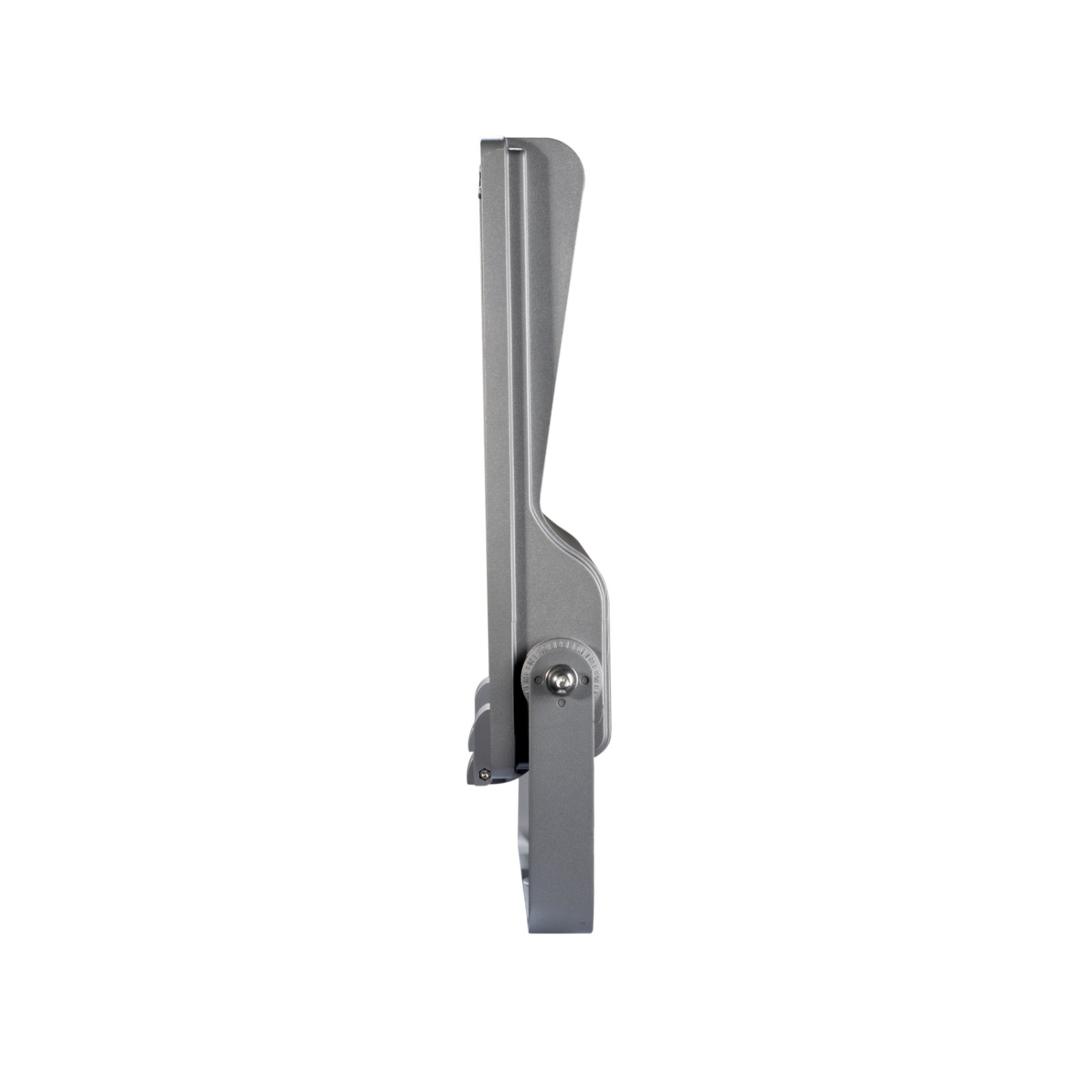

Cover & Zoom Flood light Asymmetric optics
| Code | L341543 |
| EAN | 8020295039907 |
| Power supply | 230V AC 50/60Hz |
| Power (W) | 200W |
| Light source | LED |
| Light color | 4000K |
| Optic | Asymmetric |
| Beam angle | 40° x 140° |
| Source stream | 28348lm |
| Application flow | 25771lm |
| Lifetime | 100000 h |
| Lumen maintenance | L80 |
| Insulation class | I |
| Degree of Ingress Protection | IP66 |
| Operated Temperature | -40° /+50° |
| Weight | 5,90Kg |
Description
Type of appliance
LED luminaries for outdoor areas.
Areas of use
Exterior areas, facade lighting.
Optical system
Optical system made with polycarbonate lens optics. Anti-aging silicone seal with a high level of springback elasticity recovery. Safety glass terminal plate.
LED system
LED system consisting of a LED module mounted on aluminium die-casting body.
Body of the appliance
Die-cast aluminium body painted with polyester powders. Adjustable support for wall or pole installation.
Electrical connection
Electrical connection via IP67 external connector that allows connection to the mains without opening the luminaire body from 9 to 12 mm in diameter.
Electrical version
With dimmable and programmable driver 1-10V.
