Trunk Linear Rail Lighting Medium symmetrical optics
| Code | L640244 |
| EAN | 8020295039150 |
| Equipment color | White |
| Power supply | 220÷240V 50/60Hz |
| Power (W) | 75W |
| Light source | LED |
| Light color | 4000K |
| Power factor | > 0,95 |
| Optic | Symmetric |

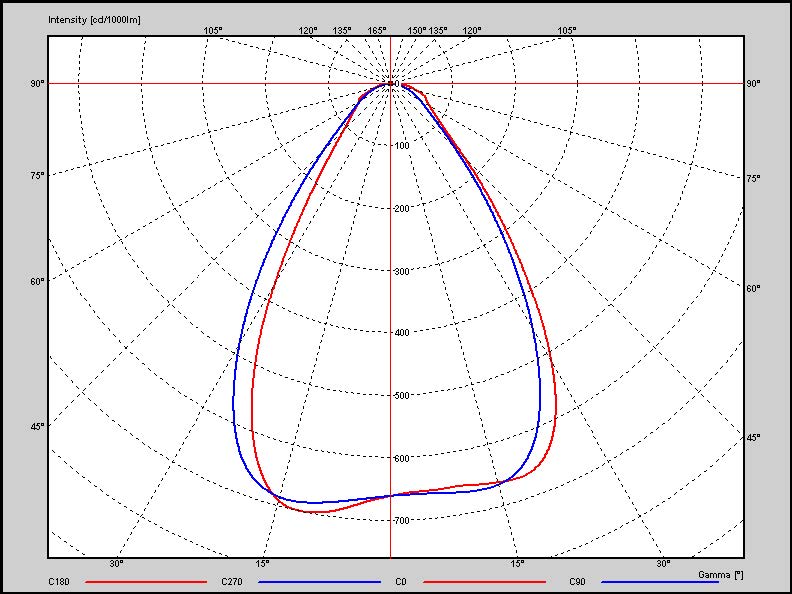

| Beam angle | 60° |
| Source stream | 11700 lm |
| Application flow | 10636 lm |
| Lifetime | 50000 h |
| Lumen maintenance | L90 |
| Insulation class | I |
| Degree of Ingress Protection | IP54 |
| Operated Temperature | -20°/+40° |
| Weight | 3,7 kg |
.jpg)
Description

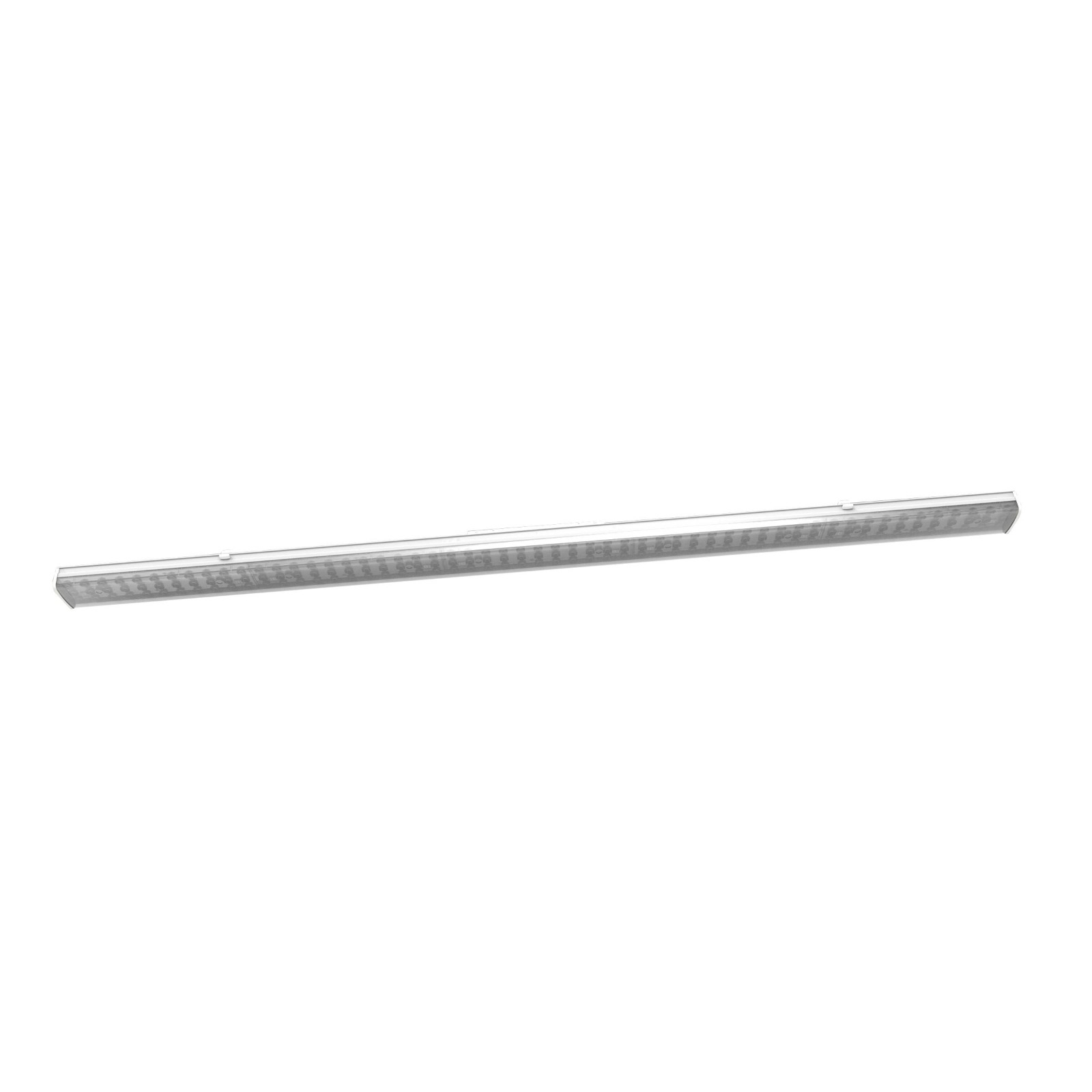

LED system
LED system made up of a module mounted on aluminum dissipative body.
Body of the appliance
Aluminum body painted with polyester powders. Support with 8 conductor wiring for serial installation.
Electrical connection
Three-phase electrical connection through the specific L905700 code connection box.
Electrical version
With 1-10V programmable and dimmable driver.
LED system made up of a module mounted on aluminum dissipative body.
Body of the appliance
Aluminum body painted with polyester powders. Support with 8 conductor wiring for serial installation.
Electrical connection
Three-phase electrical connection through the specific L905700 code connection box.
Electrical version
With 1-10V programmable and dimmable driver.
